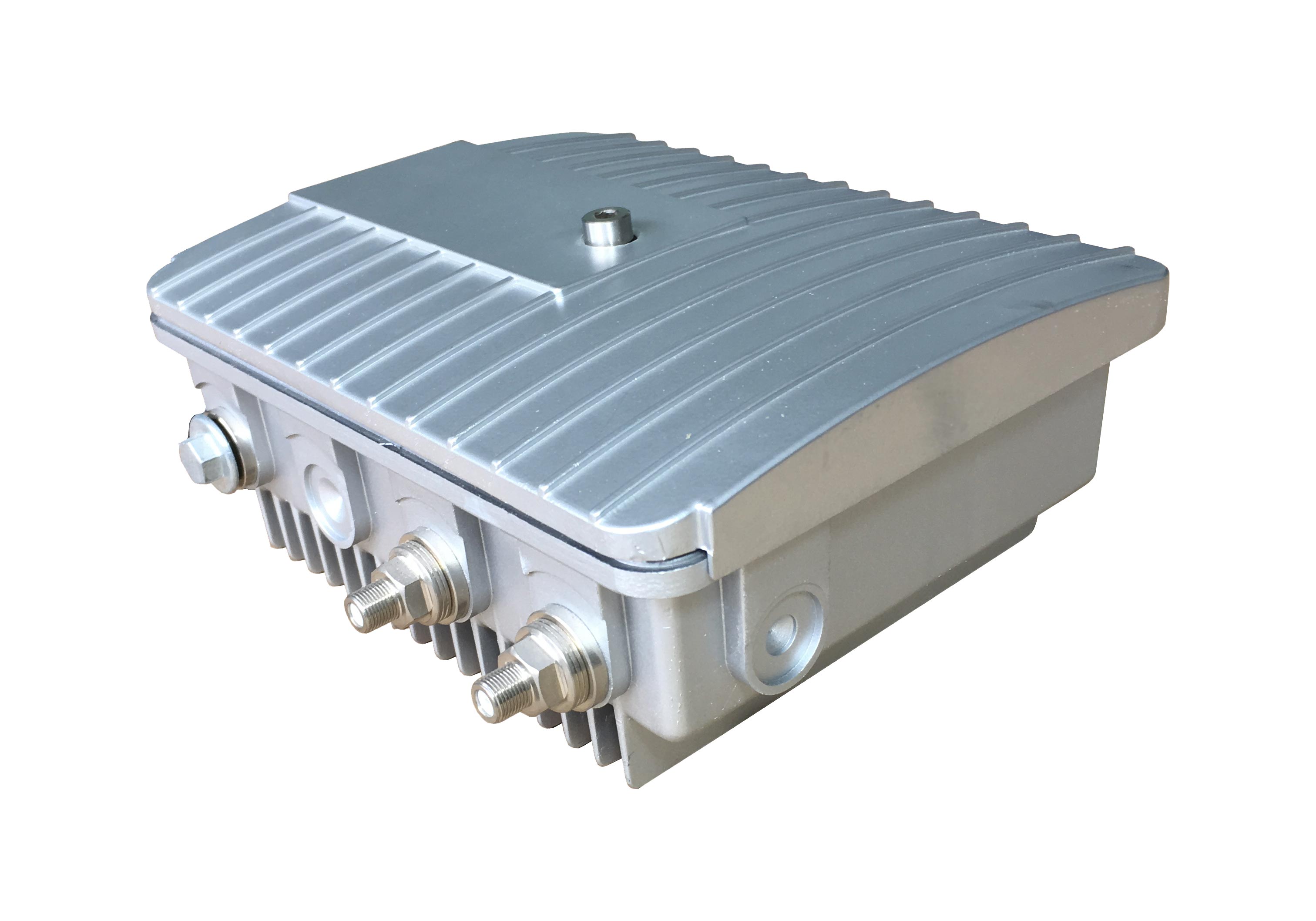

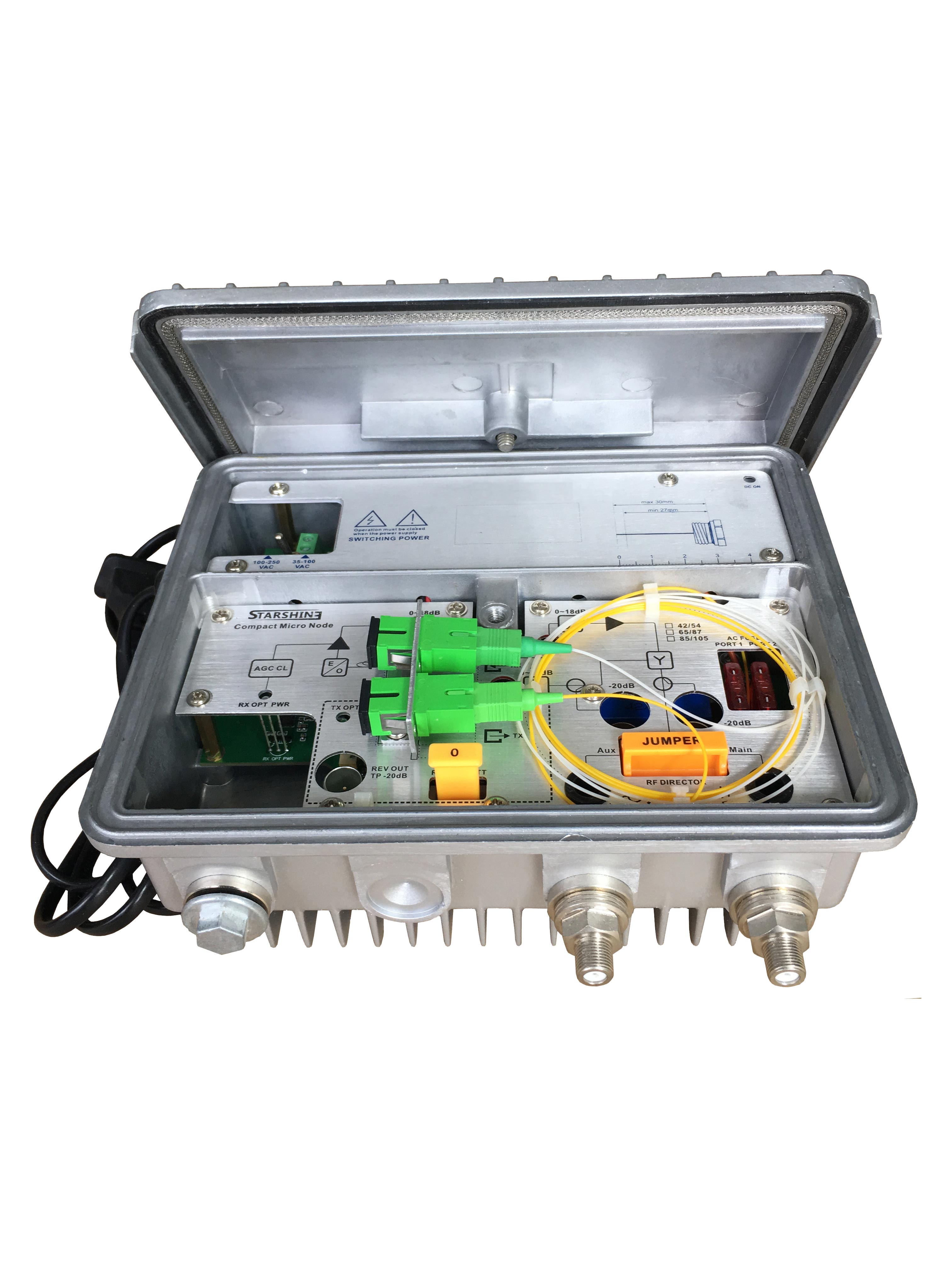

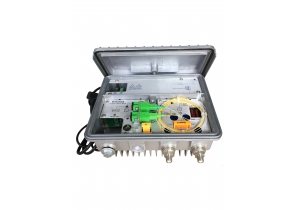

SX-E 1 GHz Optical node, 1 active outputs up to 2 with passive splitting

Model: SX-E
Introduction: 1GHz Optical node, 1 active outputs up to 2 with passive splitting
View: 34
Description

● Can be set up for 862 MHz or 1 GHz performance

● Selectable single or dual outputs with an onboard signal director

● LED display for optical input power

● AGC optical input range of –7 to +2 dBm

● Standard plug-in attenuators can be used to adjust the gain and equalization

● Both FP and DFB transmitters available

● Surge-resistant circuitry ensures resistance to high voltage transients (6kV)

● Thermal RF control minimizes gain movement over temperature

● 10 A current capacity (steady state) and 15 A surge survivability

● Outdoor housing is IP67 dustproof and watertight

● Strand and pedestal mount housing configurations are available

● All ports are PG11 or 5/8′′ with included adapter
