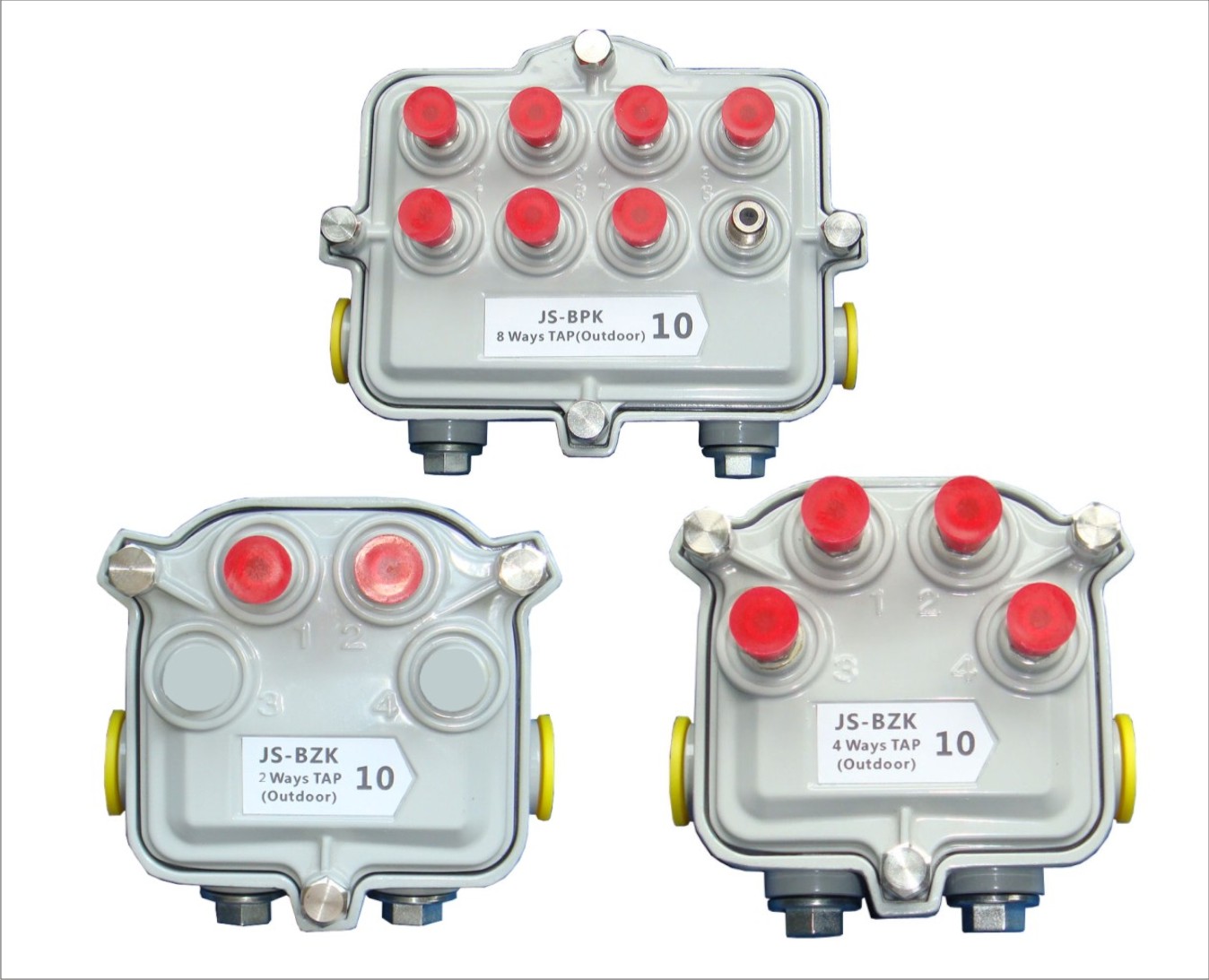

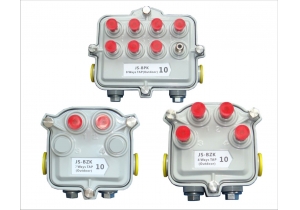

BZK/BPK Series
Model: BZK/BPK SeriesIntroduction: BZK/BPK series CATV grade hardline multi-taps offer superb performance for present and future requirements for digitaltransmission services. Insertion loss, isolation and return loss performance ensure high-quality analog and digital bi-directional signal transfer.
View: 41
Description
Product description
BZK/BPK series CATV grade hardline multi-taps offer superb performance for present and future requirements for digitaltransmission services. Insertion loss, isolation and return loss performance ensure high-quality analog and digital bi-directional signal transfer. All multi-taps are designed with removable and interchangeable tap plates, allowing "on-the-fly" tap reconfiguration while maintaining continuous thru-power and RF downstream signal during tap plate removal. Power compatibility with 30,
60, and 90Vac systems with a current capacity up to 15A make them ideal for most CATV applications. Neoprene sealing at the "F" ports and tap-plate and epoxy coating provide excellent durability in any environment.
Product feature
5 MHz to 1 GHz bandwidth performance.
Interchangeable faceplates provide "on-the-fly" redesign for maximum time savings and reduced
costs.
Continuous RF signal and power pass-thru during tap-plate removal ensures uninterrupted system services.
Bi-directional power rating to 15 amps @ 30, 60 and 90Vac provide compatibility with most systems.
F-ports triple sealed to 15psi and neoprene tap plate seal provide watertight operation in harsh conditions.
Housing top stainless steel mounting hardware for easy installation.
Tap output ports employ capacitor coupling for effective DC voltage blocking for improved hum modulation and intermodulation performance.
Performance tests conducted comforming with SCTE standards IPS TP-201, 202 and 203.
